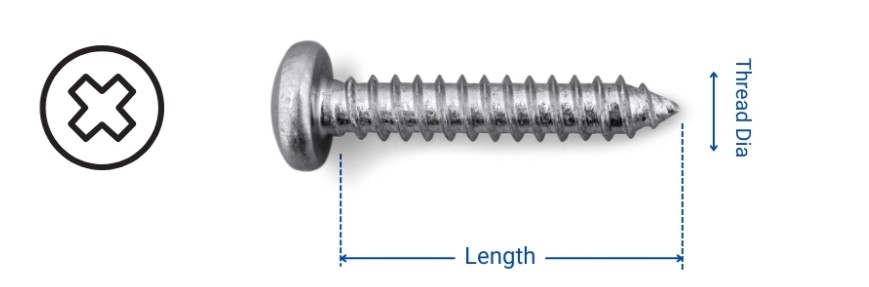

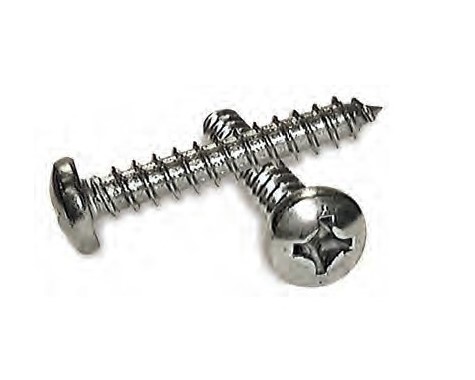

Pan Phillips Self-Tapping Screw

A pan head Phillips self-tapping screw is a threaded fastener designed to cut its own mating thread in materials like metal, plastic, or wood, eliminating the need for pre-tapping. It features a rounded pan head with a cross-shaped (Phillips) drive for better torque transfer and easy driving.

Typical Dimensions (varies as per standard):

Size Chart

Diameter (D mm)	Length m        m
#4 - 2.9mm	6.5, 9.5, 13, 16, 19
#6 - 3.6mm	6.5, 9.5, 13, 16, 19, 25, 32
#8 - 4.2mm	9.5, 13, 16, 19, 25, 32, 38, 50
#10 - 4.8mm	9.5, 13, 16, 19, 25, 32, 38, 50
#12 - 5.5mm	9.5, 13, 16, 19, 25, 32, 38, 50
#14 - 6.4mm	16, 19, 25, 32, 38, 50

Key Features:

• Self-Tapping Design – forms its own thread during insertion.

• Pan Head – wide bearing surface for secure fastening.

• Phillips Drive – prevents slippage, allows higher torque.

• Sharp Pointed Tip – easy penetration into materials.

• Versatile Applications – widely used in sheet metal, plastics, electrical enclosures, and light construction.
